PROJECT DESCRIPTION

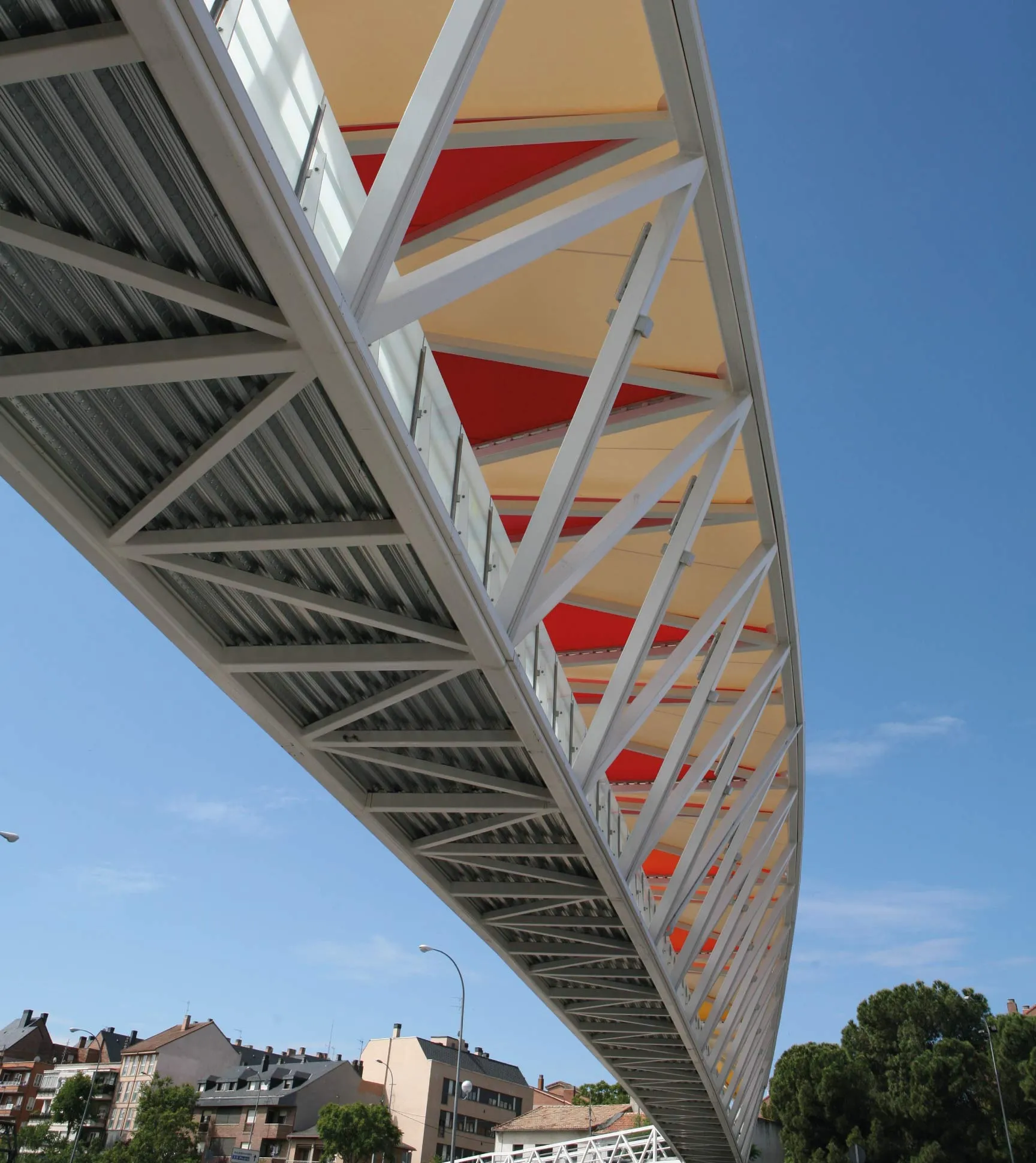

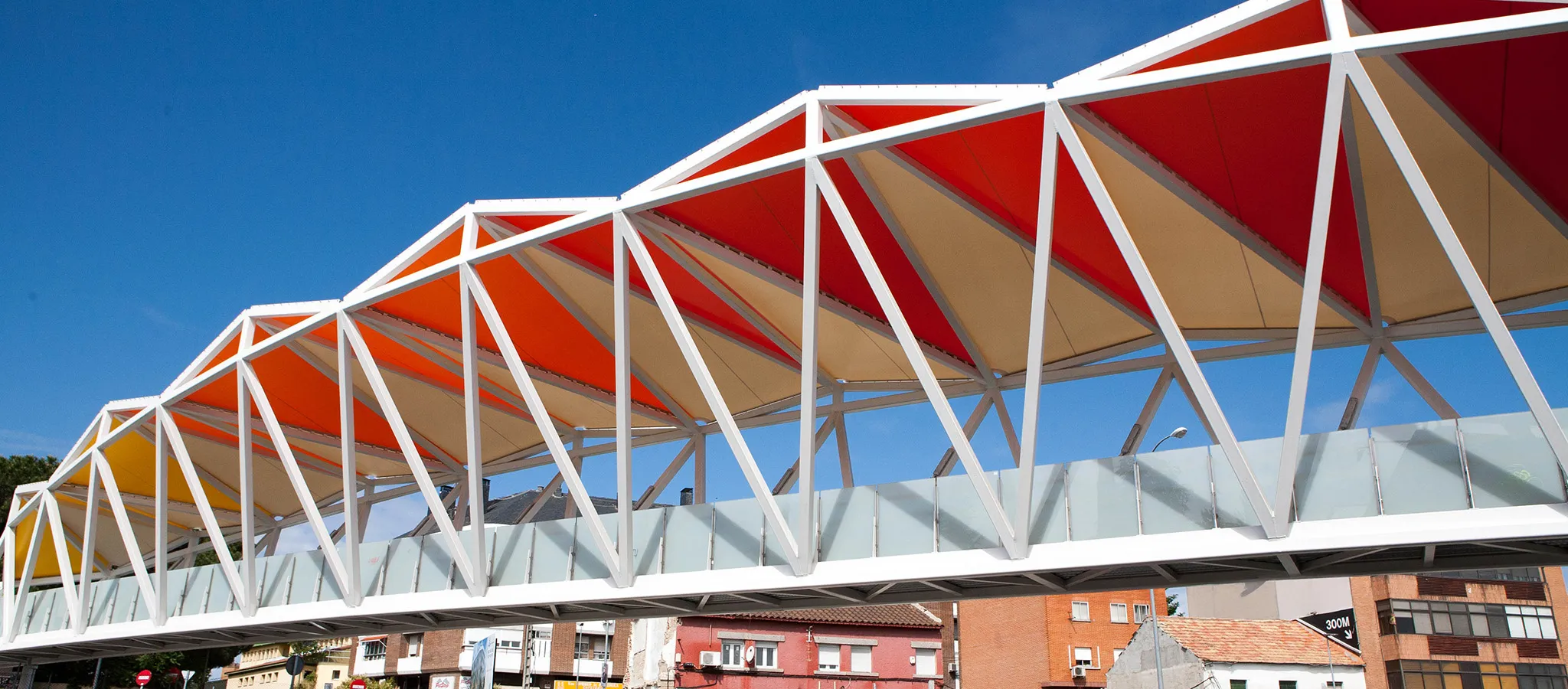

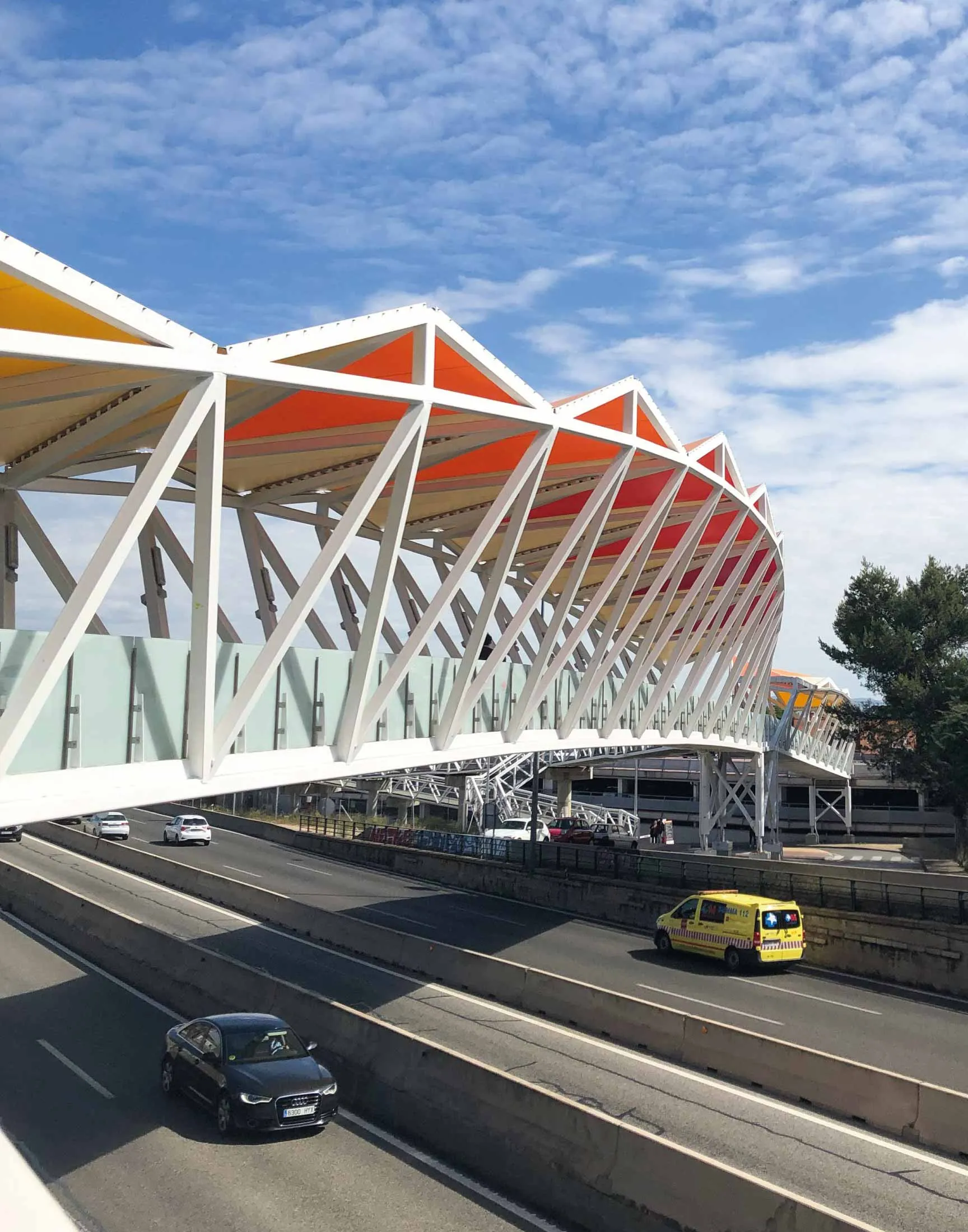

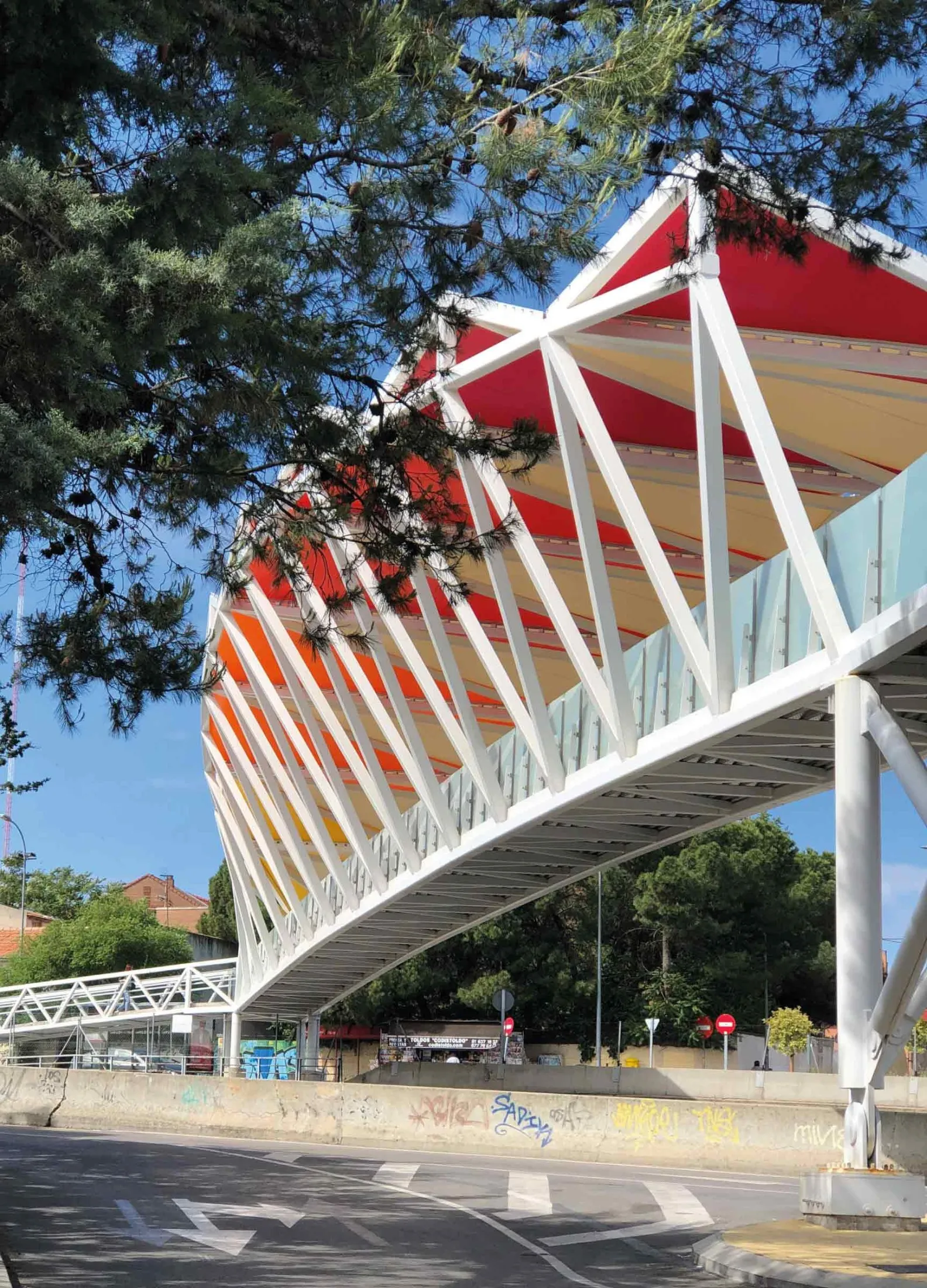

The aim of this project is to condition the footbridge, over the A-6, which connects the neighbourhood of Marzuela to the commuter train station of Las Rozas. This PVC canopy gives the footbridge a colourful aesthetic and covers it to protect pedestrians from rain and sun, as well as laterally from wind.
BASE TÉCNICA
TECHNICAL BASE

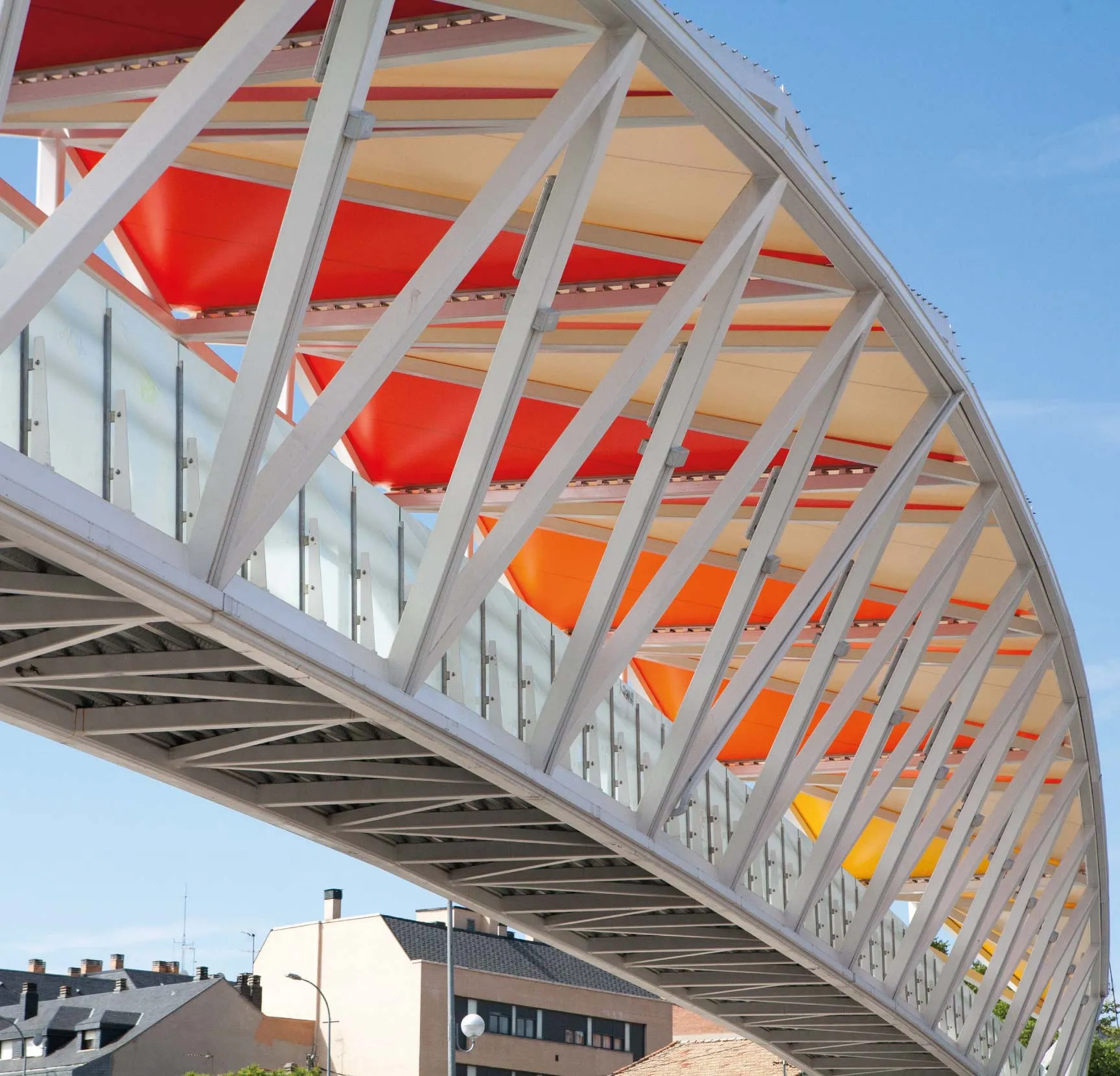

The tensile membrane in the shape of a triangular polygon covers a 322m² area and is made from Precontraint 502 Satin PVC in 5 different standard RAL shades.
The canvas is fastened and tightened all around the perimeter with an anodised aluminium tensor frame and stainless steel strips and rods attached to the metallic support structure.
